Introduction to Air Bearing Technology in Air Suspension Centrifugal Blowers

Post time: 2026-09-17 14:20:19

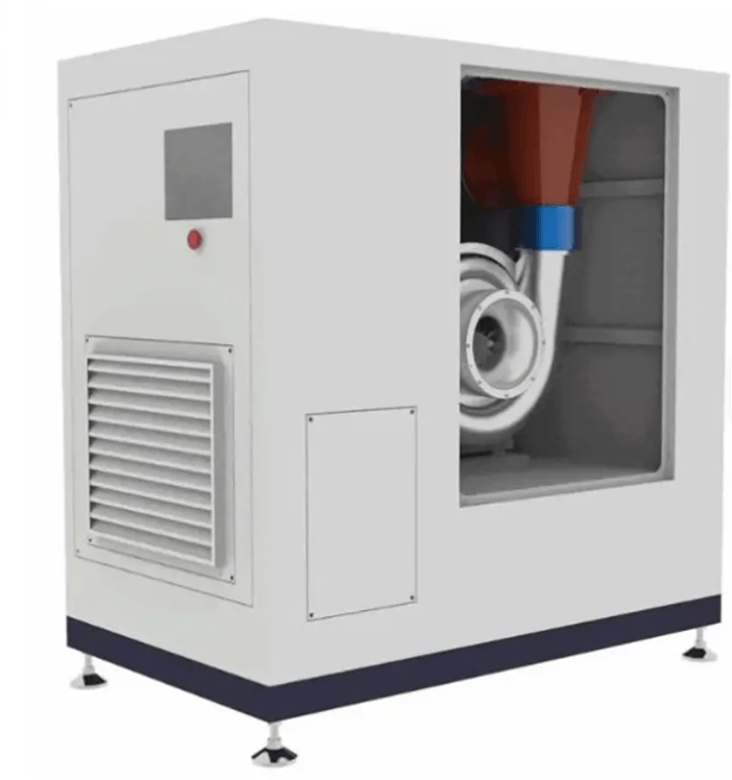

An air suspension centrifugal blower is a modern, high-efficiency equipment powered by advanced air bearing technology. Unlike traditional mechanical bearings, air bearings utilize air as a lubricating medium. This allows the rotor to operate in a near contactless state during high-speed rotation, significantly reducing mechanical friction, minimizing energy loss, and improving both operating efficiency and equipment service life. Driven by growing demands for energy conservation and emission reduction, air suspension centrifugal blowers are increasingly used in central air conditioning, industrial ventilation, wastewater treatment, cleanrooms, and other sectors.

1. Working Principle of Air Bearings

1.1 Generating Stable Load Capacity via Air Film

The core mechanism of an air bearing relies on an air film generated by high-speed rotation to form a stable cushioning layer between the bearing and the shaft. As the rotor reaches a designated speed, air is drawn into the clearance of the bearing and compressed into a pressurized air film with sufficient load capacity. Consequently, direct contact between the rotating shaft and the bearing components is effectively prevented.

Because this dynamic process requires no traditional lubricants—such as oil or grease—it eliminates oil-related maintenance tasks and prevents lubricating media from contaminating the blower's operating environment.

1.2 Maintaining Rotor Stability Under High-Speed Operation

Air bearings work synchronously with high-speed permanent magnet motors and variable-frequency control systems. By precisely regulating motor speed, the rotor operates stably on the supporting air film. This minimizes vibration and mechanical noise, ensuring reliable and long-term high-speed performance.

2. Key Technical Features of Air Bearings

2.1 Low Friction Loss

Conventional mechanical bearings inevitably experience rolling or sliding friction during operation. In contrast, air bearings rely entirely on the air film for support, drastically reducing mechanical contact. As a result, friction loss is minimized, significantly improving overall energy efficiency.

2.2 Oil-Free Operation

Using air as the working medium eliminates the need for regular oiling or greasing. For applications with strict air purity requirements, this completely removes the risk of oil contamination while simultaneously lowering routine maintenance costs.

2.3 Reduced Noise and Vibration

Without physical contact and mechanical impact during operation, air suspension centrifugal blowers run with exceptionally low noise and vibration levels. This characteristic is particularly beneficial for noise-sensitive environments such as hospitals, commercial buildings, data centers, and clean manufacturing facilities.

3. Application Advantages in Centrifugal Blowers

When combined with high-speed motors and variable-frequency drive (VFD) technology, air bearings enable centrifugal blowers to maintain optimal efficiency across varying operating conditions. The system automatically adjusts its rotational speed based on real-time airflow and pressure demands, eliminating unnecessary power consumption.

Additionally, air suspension centrifugal blowers feature a compact design and a small footprint, delivering large air volumes while optimizing equipment room space. The elimination of wearing mechanical parts also significantly extends maintenance intervals.

4. Critical Considerations for Implementation

Despite their clear technical advantages, air bearings demand high precision in design, manufacturing, and control. High-speed rotors require exceptional dynamic balance, and control systems must regulate motor behavior with high accuracy.

Furthermore, equipment selection should involve a comprehensive evaluation of actual flow rate, pressure demands, operating hours, and ambient conditions. Proper system design and standardized installation and commissioning are essential to guaranteeing long-term, stable performance.

5. Conclusion

Air bearing technology is a pivotal core innovation that enables air suspension centrifugal blowers to deliver high efficiency, low noise, and minimal maintenance. By substituting traditional mechanical contact with a gas film, it reduces friction loss and eliminates oil lubrication maintenance. As demand for energy-saving equipment grows, air suspension centrifugal blowers and air bearing technology will play an increasingly prominent role in industrial energy efficiency, HVAC, and environmental protection applications.
