What Are the Core Components of an Air Suspension Centrifugal Blower?

Post time: 2026-09-14 14:31:29

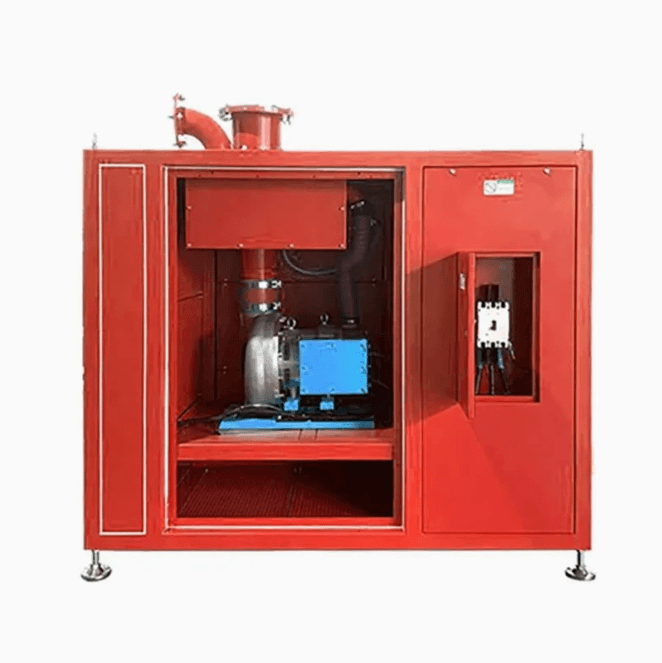

An air suspension centrifugal blower is a high-efficiency and energy-saving blower that uses air bearing technology. It is widely used in wastewater treatment, industrial aeration, pneumatic conveying, food processing, and other fields. Compared with traditional blowers, the air suspension centrifugal blower uses air bearings to achieve contact-free operation between the shaft and bearing, reducing mechanical friction and energy loss. Understanding its core components and their functions can help users make better decisions regarding equipment selection, installation, and maintenance.

1. Core Components of an Air Suspension Centrifugal Blower

1.1 Air Bearings

The air bearing is one of the key components that distinguishes an air suspension centrifugal blower from conventional blowers. During operation, a stable air film is generated to keep the high-speed rotating shaft separated from the bearing without direct contact, thereby reducing friction and mechanical losses.

Since there is no direct contact like that found in conventional mechanical bearings, air bearings normally do not require conventional lubricating oil during operation. This can reduce lubrication system maintenance while helping to lower operating noise and vibration.

1.2 High-Speed Motor

The high-speed motor is the power core of an air suspension centrifugal blower and drives the impeller at high speed. Its high rotational speed allows the blower to achieve high air delivery capacity while maintaining a relatively compact size.

A high-efficiency high-speed motor can reduce electricity consumption. When combined with a variable-frequency control system, the motor speed can be adjusted according to actual operating conditions, providing more flexible airflow control.

1.3 High-Speed Impeller

The impeller is a key component responsible for air transportation and pressure generation. When driven by the motor, the impeller rotates at high speed, drawing air into its center and forcing it outward under centrifugal force to produce the required airflow and pressure.

The impeller's structural design, material, and manufacturing precision directly affect the efficiency, stability, and service life of the blower. Therefore, a high-quality impeller is essential for improving overall equipment performance.

2. Important Auxiliary Components

2.1 Variable-Frequency Control System

The variable-frequency control system adjusts the motor speed so that the blower output can be matched to actual operating requirements. For example, in wastewater treatment aeration, the required airflow may vary at different times. Variable-frequency control can prevent the blower from operating continuously at full load, helping reduce energy consumption.

2.2 Air Inlet Filter

Before entering the blower, air needs to pass through a filtration system. The air inlet filter removes dust and other impurities from the incoming air, helping protect critical components such as the impeller, high-speed motor, and air bearings.

The filter should be inspected, cleaned, or replaced regularly according to the operating environment. If the filter becomes clogged, the inlet resistance may increase and affect blower efficiency.

2.3 Silencing and Piping Systems

Air suspension centrifugal blowers are generally equipped with inlet and outlet piping systems and corresponding noise-reduction devices. Proper piping design can reduce airflow resistance and help maintain stable blower operation, while silencers can reduce aerodynamic noise generated during air intake and discharge.

3. How Core Components Affect Blower Performance

3.1 Components Must Work Together

The performance of an air suspension centrifugal blower is not determined by a single component. Air bearings, high-speed motors, impellers, control systems, and filtration systems work together as an integrated system. A problem with any key component may affect airflow, pressure, energy consumption, and operating stability.

3.2 Importance of High-Quality Core Components

For industrial projects requiring long-term continuous operation, the quality of core components has a direct impact on equipment reliability. When selecting an air suspension centrifugal blower, users should consider not only rated airflow and pressure but also the configuration and quality of key components such as air bearings, motors, impellers, and control systems.

4. Conclusion

An air suspension centrifugal blower mainly consists of air bearings, a high-speed motor, a high-speed impeller, a variable-frequency control system, an air inlet filter, and silencing and piping systems. Among these, the air bearings, high-speed motor, and high-speed impeller are particularly important core components. Through proper selection, standardized installation, and regular maintenance, the blower can fully deliver its advantages of high efficiency, low noise, and stable operation, providing reliable air power for industrial production and environmental protection projects.
