Working Principle, Technical Features and Applications of Air Suspension Centrifugal Blowers

Post time: 2026-08-26 15:11:13

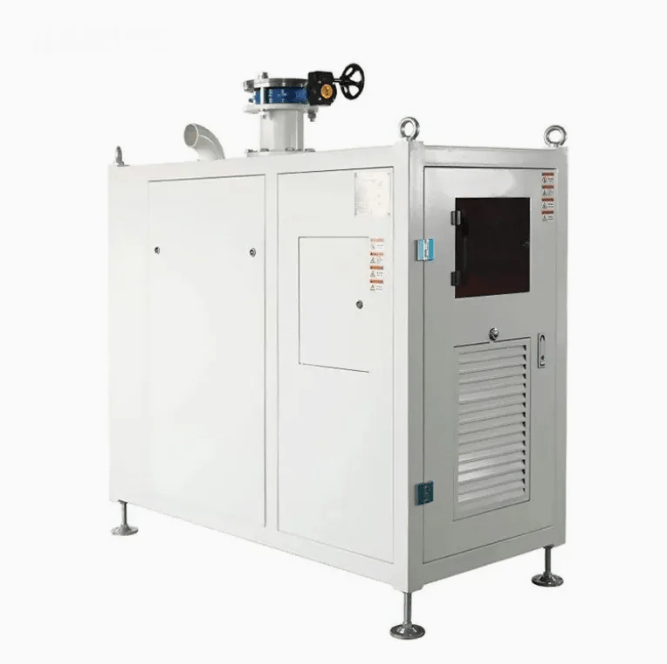

An air suspension centrifugal blower is a new type of energy-efficient blower that uses air bearing technology, a high-speed motor, and a high-efficiency centrifugal impeller. Compared with traditional Roots blowers and conventional centrifugal blowers, air suspension centrifugal blowers offer advantages in operating efficiency, noise control, maintenance costs, and performance adjustment. In recent years, they have been increasingly used in wastewater treatment, industrial aeration, pneumatic conveying, fermentation, and other industries that require a stable air supply.

1. Working Principle of Air Suspension Centrifugal Blowers

Contactless Operation with Air Suspension Bearings

One of the core technologies of an air suspension centrifugal blower is the air bearing. After the blower starts, the high-speed rotor rotates and generates a stable air film between the bearing and the rotor, allowing the rotor to operate in a suspended state. During operation, there is essentially no mechanical contact between the rotor and bearing, which reduces friction and wear associated with conventional mechanical bearings.

High-Speed Motor Driving a High-Efficiency Impeller

Air suspension centrifugal blowers generally use a high-speed permanent magnet motor to directly drive the impeller. As the motor drives the impeller at high speed, air enters through the inlet and gains energy through centrifugal force before being discharged through the outlet. A variable frequency control system can adjust airflow and pressure according to actual air demand, allowing the blower to adapt more flexibly to different operating conditions.

2. Main Features of Air Suspension Centrifugal Blowers

High Efficiency and Energy Saving

Air suspension centrifugal blowers use a high-speed direct-drive structure, reducing mechanical energy losses associated with traditional transmission systems. Variable frequency control can also adjust the operating condition according to the actual load, avoiding prolonged high-load operation and reducing unnecessary energy consumption.

For projects such as wastewater treatment that require continuous operation, blowers are often one of the major energy-consuming devices in the aeration system. Therefore, improving blower efficiency and reducing energy consumption per unit of airflow can help lower long-term operating costs.

Low Noise and Low Vibration

Because air bearings reduce mechanical contact during operation, mechanical friction is relatively low. Combined with a high-speed impeller and optimized aerodynamic design, this can help reduce vibration and operating noise. This feature makes air suspension centrifugal blowers suitable for locations with strict noise requirements.

Compact Structure and Easy Maintenance

Air suspension centrifugal blowers generally adopt a direct-drive structure in which the high-speed motor is directly connected to the impeller. This reduces traditional transmission components such as couplings and gears, resulting in a more compact overall structure. Under proper installation and operating conditions, some mechanical maintenance requirements can also be reduced.

3. Applications of Air Suspension Centrifugal Blowers

Wastewater Treatment Aeration

Wastewater treatment is one of the major applications of air suspension centrifugal blowers. Aeration systems need to continuously supply air to biological treatment tanks to provide oxygen for microorganisms. Air suspension centrifugal blowers can adjust their operating frequency according to actual oxygen demand, helping reduce system energy consumption while meeting aeration requirements.

Industrial Aeration and Pneumatic Conveying

In fermentation, food processing, chemical production, and other industrial processes, stable and clean air supply is required for certain applications. Air suspension centrifugal blowers can provide the required airflow and pressure according to different process requirements. They can also be used as air supply equipment in pneumatic conveying systems for powders and granular materials.

4. How to Select the Right Air Suspension Centrifugal Blower

Determine the Model Based on Airflow and Pressure

When selecting a blower, the required airflow and pressure should first be determined. The blower model should then be selected based on actual conditions such as pipeline resistance, operating hours, ambient temperature, and altitude. The selection should not be based solely on motor power or blower specifications.

Consider the Overall Operating Conditions

For projects requiring long-term operation, attention should also be paid to the adjustment range, start-stop frequency, installation environment, and noise requirements. Appropriate accessories such as filters, check valves, silencers, and control systems should also be selected to ensure proper matching between the blower and the overall air supply system.

5. Maintenance Tips for Air Suspension Centrifugal Blowers

Although air suspension centrifugal blowers reduce the number of traditional mechanical transmission components, regular maintenance remains important. During operation, the air filtration system should be inspected regularly to prevent dust and impurities from entering the blower. Operating temperature, vibration, noise, airflow, and pressure should also be monitored.

For equipment operating continuously for long periods, a regular inspection schedule should be established. Abnormal conditions should be identified and addressed promptly to reduce the risk of unexpected shutdowns and extend equipment service life.

Overall, air suspension centrifugal blowers offer significant advantages in energy efficiency, low noise, and maintenance due to technologies such as air bearings, high-speed direct-drive motors, variable frequency control, and high-efficiency impellers. In practical applications, the blower should be properly selected according to specific process requirements and maintained according to recommended procedures to maximize its efficient operating performance.
