How NSRH Roots Blowers Work: Simple Guide to Their Design and Principle
Post time: 2026-04-13 14:38:41
Introduction
NSRH Roots blowers are used in many industries, from wastewater treatment to chemical plants. They might sound complex, but their principle is pretty easy to understand. Knowing how they work can help operators run them better and spot problems before they become serious.
Blower Structure
Main Parts

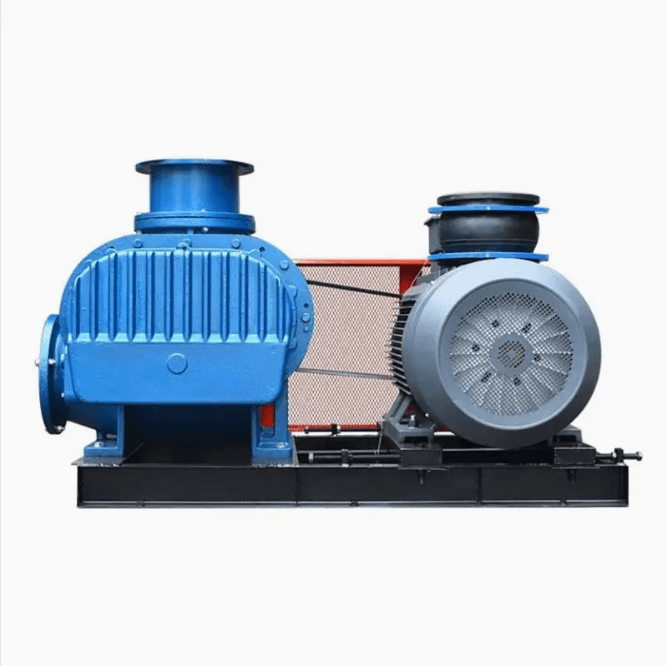

The blower has a casing, two rotors, bearings, seals, and inlet and outlet ports. The rotors spin inside the casing, forming small cavities that carry gas from the inlet to the outlet.
How the Rotors Work
As the rotors spin, they trap pockets of air and push them forward. This creates a steady flow of gas through the blower. A simple diagram can show the rotors’ movement and the airflow path.
Working Principle
Trapping and Moving Gas
The two rotors turn in opposite directions. Gas enters the blower, fills the rotor cavities, and is carried to the outlet.
Compression and Discharge
While the gas moves through the cavities, it gets slightly compressed due to the rotor shape. Finally, the gas exits the blower through the outlet, ready for use in the system.
Why It’s Popular
Simple and Strong: Few moving parts make it reliable.
Low Maintenance: Easy to keep running for years.
Better Understanding Helps: Knowing airflow dynamics can improve efficiency.
Conclusion
NSRH Roots blowers are clever machines with a simple design. Once you see how the rotors trap and move gas, the whole process becomes clear and easy to explain.
