M Series Roots Blower: Working Principle Explained

Overview of the M Series Roots Blower

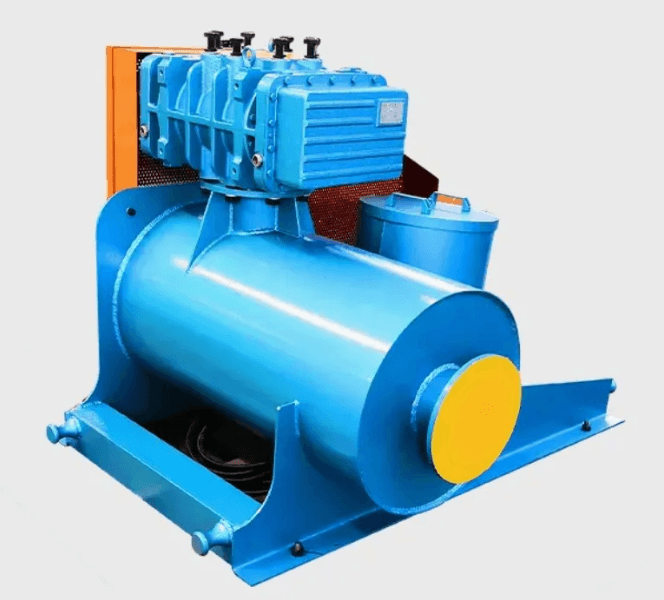

The M Series Roots blower is a positive displacement air blower widely used in wastewater treatment, aquaculture, pneumatic conveying, cement, and chemical industries. With its simple structure, stable airflow, and reliable performance, it has become an essential piece of equipment for many industrial applications.

The blower is typically driven by high-precision timing gears, allowing it to deliver a continuous and stable air supply. Thanks to its long service life and easy maintenance, the M Series Roots blower is increasingly favored by industrial users.

Working Principle of the M Series Roots Blower

Positive Displacement Air Delivery

The M Series Roots blower mainly consists of a casing, rotors, timing gears, bearings, and sealing components. During operation, two three-lobe or two-lobe rotors rotate synchronously in opposite directions through timing gears. The rotors never come into direct contact with each other or the casing.

As the rotors rotate, air is trapped between the rotor lobes and the casing, then continuously transported from the inlet to the outlet. Once the air reaches the discharge port, it is forced into the pipeline by the outlet pressure, completing the air delivery process.

No Internal Compression

Unlike compressors, a Roots blower does not compress air internally. Instead, pressure is generated externally at the discharge side. This design ensures a stable airflow, making it suitable for continuous air supply applications.

Main Advantages

Stable Airflow and Reliable Performance

Because of its positive displacement operating principle, the blower delivers a nearly constant airflow regardless of pressure fluctuations within the designed operating range.

Compact Structure and Easy Maintenance

The blower contains relatively few internal components, making maintenance straightforward. Regular inspection of lubricating oil, timing gears, and bearings helps ensure long-term reliable operation.

Suitable for Various Industrial Applications

The M Series Roots blower is widely used for wastewater aeration, pneumatic conveying, combustion air supply, oxygenation, and other industrial processes requiring continuous airflow.

Maintenance Recommendations

To maintain optimal performance, lubricating oil should be replaced at the recommended intervals. Belts, couplings, and fasteners should also be inspected regularly. Keeping the air filter clean prevents dust from entering the blower and protects internal components.

If abnormal vibration, excessive noise, or unusually high temperatures occur during operation, the blower should be stopped immediately for inspection to prevent further damage.

Conclusion

The M Series Roots blower combines stable performance, mature design, and easy maintenance, making it a reliable solution for industrial air delivery. Proper equipment selection and routine maintenance can improve operating efficiency while extending service life.
