Why Can Air Suspension Centrifugal Fans Reduce Operating Energy Consumption?

In industrial production, wastewater treatment, food processing, electronics manufacturing, and other fields, fans often need to operate continuously for long periods. Therefore, their energy consumption can have a direct impact on a company's operating costs. Traditional centrifugal fans are widely used, but long-term operation can involve mechanical friction, transmission losses, and efficiency-related issues. In comparison, air suspension centrifugal fans use air bearing technology to keep the impeller in an almost contact-free operating state, significantly reducing mechanical losses and lowering energy consumption while meeting process requirements.

1. Energy-Saving Principles of Air Suspension Centrifugal Fans

1.1 Air Bearings Reduce Mechanical Friction

One of the key technologies of an air suspension centrifugal fan is the air bearing. During operation, a stable air film is formed to suspend the rotor, so there is almost no direct contact between the bearing and the rotor.

As mechanical friction is significantly reduced, friction losses during operation are also minimized. This helps reduce the driving power required by the motor while reducing mechanical wear and improving long-term operating stability.

1.2 High-Efficiency Permanent Magnet Motors Reduce Power Loss

Many air suspension centrifugal fans use high-speed permanent magnet motors as their power source. Compared with conventional motors, permanent magnet motors can achieve higher operating efficiency and reduce energy losses during electrical energy conversion.

In addition, high-speed motors can directly drive the impeller, reducing energy losses caused by intermediate transmission components such as couplings and belts. This allows more of the input electrical energy to be converted into the mechanical energy required for air delivery.

2. Variable-Frequency Control Further Reduces Energy Consumption

2.1 Adjusting Airflow According to Actual Demand

Airflow requirements in industrial applications are not always constant. If a fan operates at a fixed speed for extended periods, energy may be wasted when the actual process requires a lower airflow.

Air suspension centrifugal fans are often equipped with variable-frequency control systems that adjust motor speed according to actual airflow and pressure requirements. When system demand decreases, the fan can reduce its operating speed accordingly, avoiding unnecessary overcapacity.

2.2 Reducing Additional Energy Consumption Caused by Frequent Start-Stop Operations

Intelligent control systems can dynamically adjust airflow according to production requirements, allowing the fan to better match actual operating conditions. Proper control can reduce unnecessary full-load operation and improve the overall energy efficiency of the system.

3. Comprehensive Energy Savings Through Structural Optimization

3.1 Reducing Transmission Components

Some traditional fans use belts or other mechanical transmission systems. During operation, these components generate certain transmission losses and require regular tensioning, maintenance, and replacement.

Air suspension centrifugal fans generally use a direct-drive structure in which the motor is directly connected to the impeller. This reduces intermediate transmission components, lowers energy losses, and simplifies routine maintenance.

3.2 Lowering Maintenance Costs and Long-Term Operating Losses

Air bearings do not experience the same continuous contact and wear as traditional mechanical bearings, reducing the need for frequent lubrication and bearing replacement. With fewer mechanical components, maintenance becomes simpler, while efficiency degradation caused by component wear can also be reduced.

It should be noted that the actual energy-saving performance of an air suspension centrifugal fan depends on factors such as airflow, pressure, operating hours, control methods, and system piping design. Proper equipment selection and optimized operating conditions are essential to fully realize its energy-saving potential.

4. Where Are Air Suspension Centrifugal Fans Suitable?

Air suspension centrifugal fans are suitable for applications that require continuous operation, energy efficiency, and stable performance, such as wastewater treatment aeration, industrial air supply, pneumatic conveying, fermentation processes, and certain clean production environments.

Overall, air bearings, high-efficiency motors, direct-drive structures, and variable-frequency control form the foundation of the energy-saving performance of air suspension centrifugal fans. By reducing mechanical friction and transmission losses while precisely adjusting operating conditions according to actual demand, these fans can effectively reduce energy consumption during long-term operation and help businesses lower operating costs.

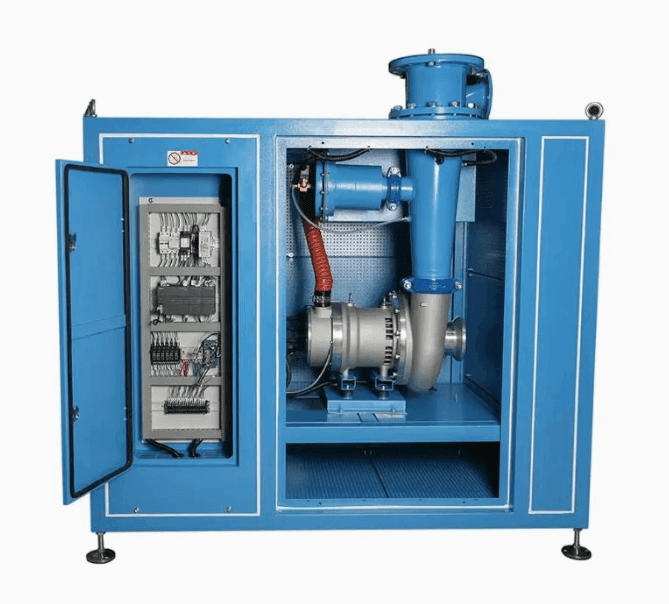

Air Suspension Blowers Product Information
